| Linear Park Manzanares-South Footbridge | |
| Madrid, España | |
| Structural typology | Pedestrian Bridges |
| Date | March, 2011 |
| Scope | Detailed design and construction support |
| Construction | mrio arquitectos y acciona infraestructuras |
| Owner | Ayuntamiento de Madrid |

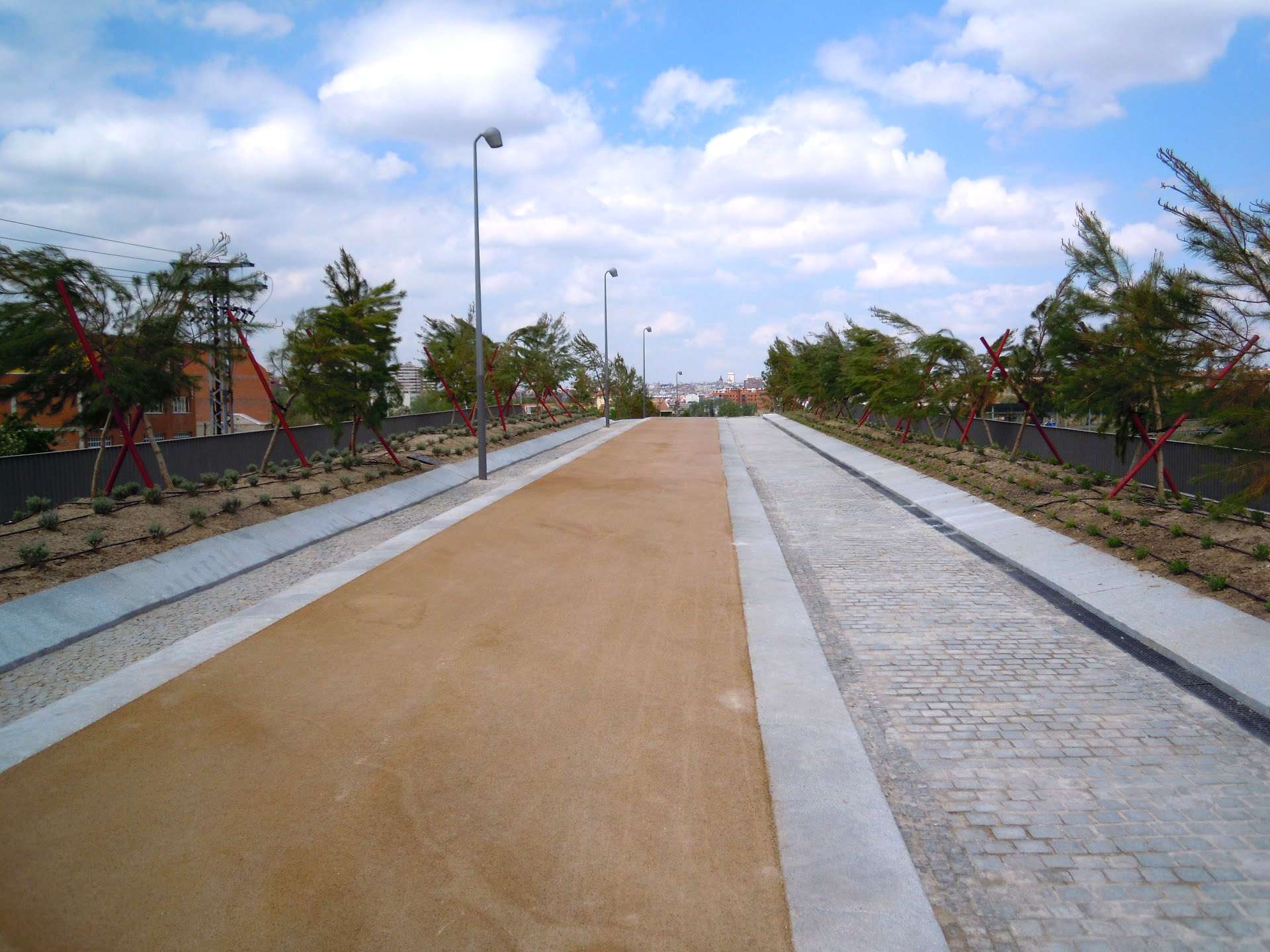

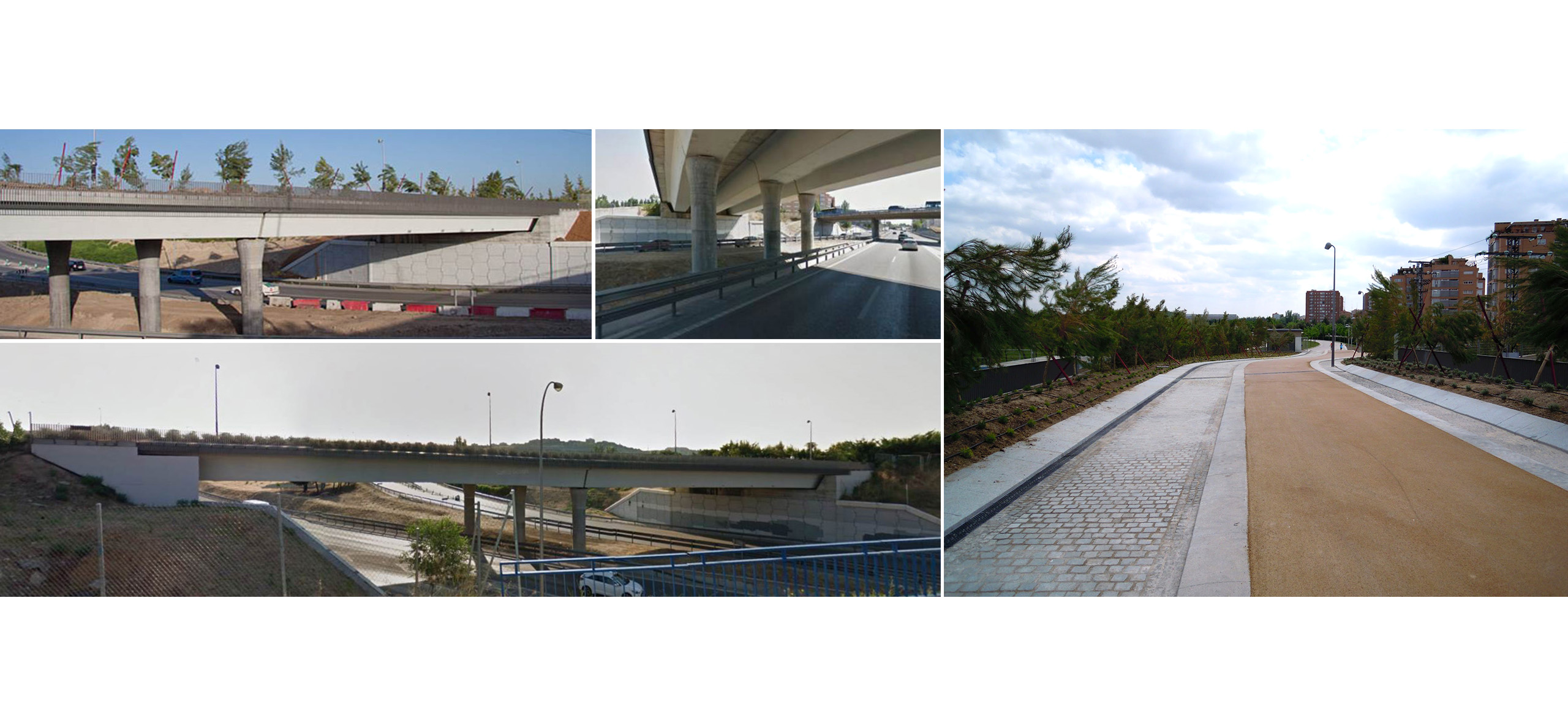

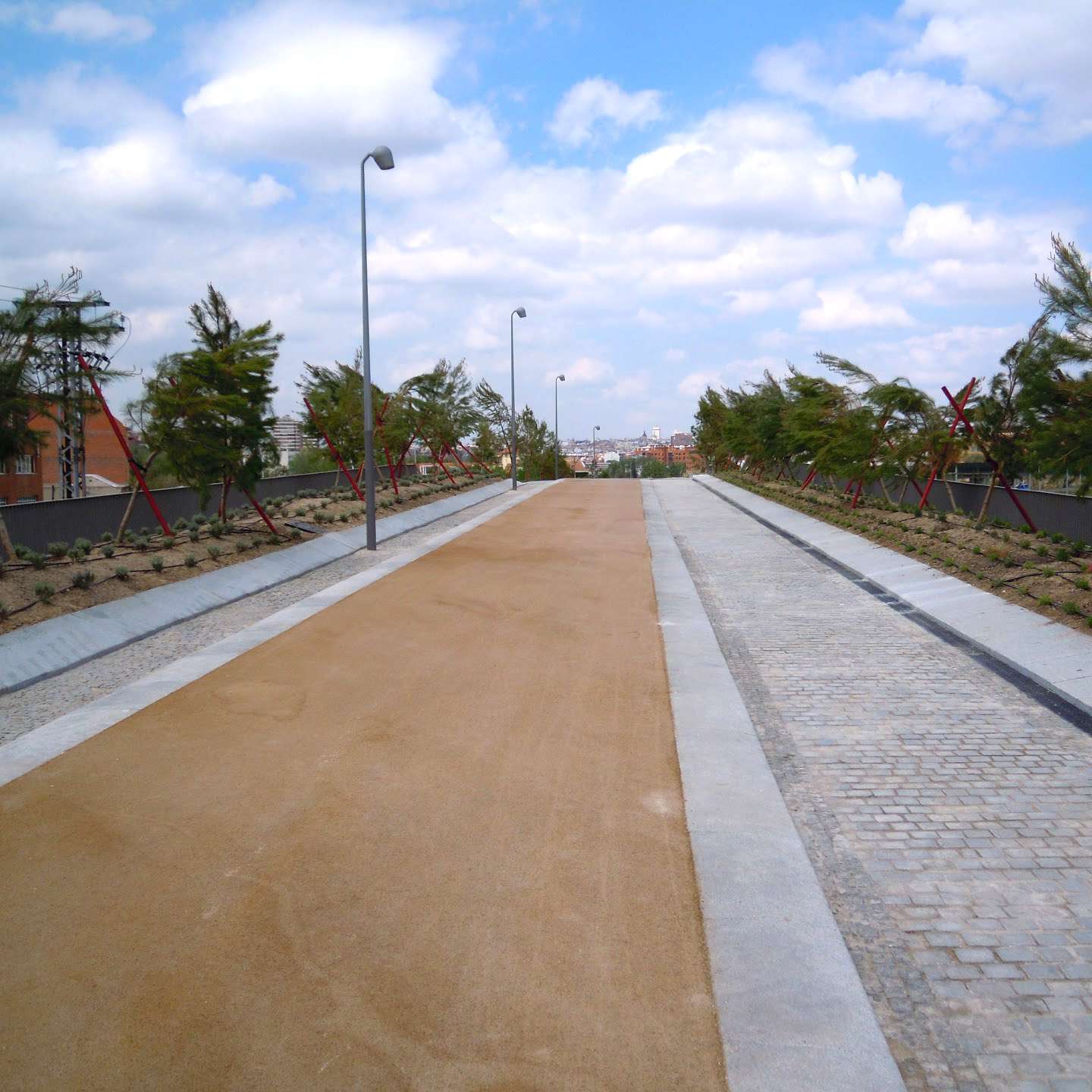

Construction project and technical assistance of the new pedestrian and cyclist footbridge on the right bank of the Manzanares river for the connection between the Madrid-Rio park and the Linea del Manzanares Sur park.
Total length of the structure: 62.5 meters distributed in two spans of 32.50 + 32.00 m.
Board width: 15.00 m.
Type: 3 concrete beams of 1.70 m height
