Bridge over N240 en Álava
Elosu, Spain
Structural typology Tender Design
Date July, 2016
Scope Tender design
Cliente Diputación Foral de Álava
Design Fhecor
Collaboration Sestra
An alternative to the reference project is proposed with a more distinctive aesthetic, using similar finishes but reducing the cost of elements that are not visible to road users, particularly by shortening the length of the steel deck and reducing the volume of the abutments, without affecting the road clearance.

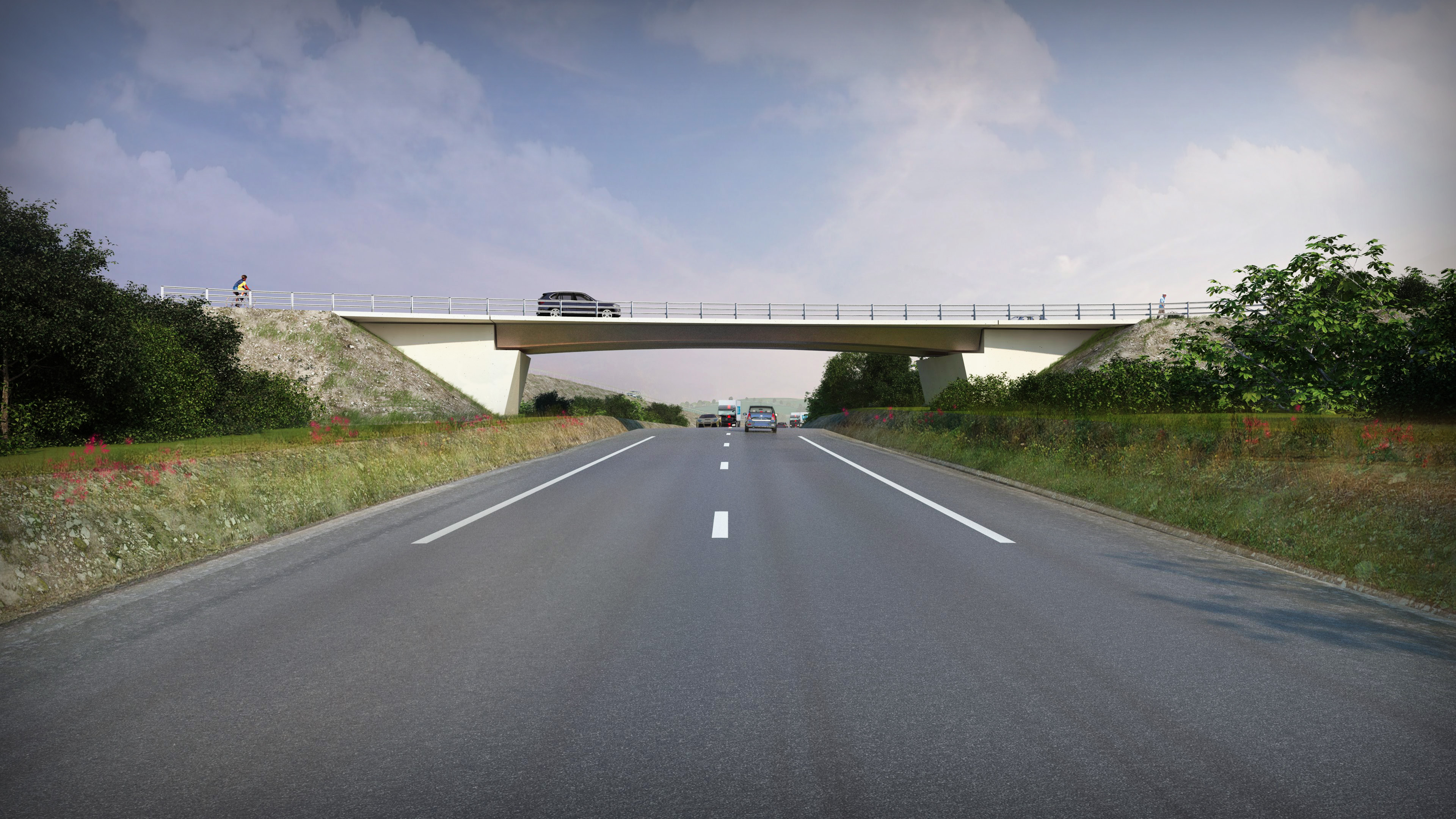

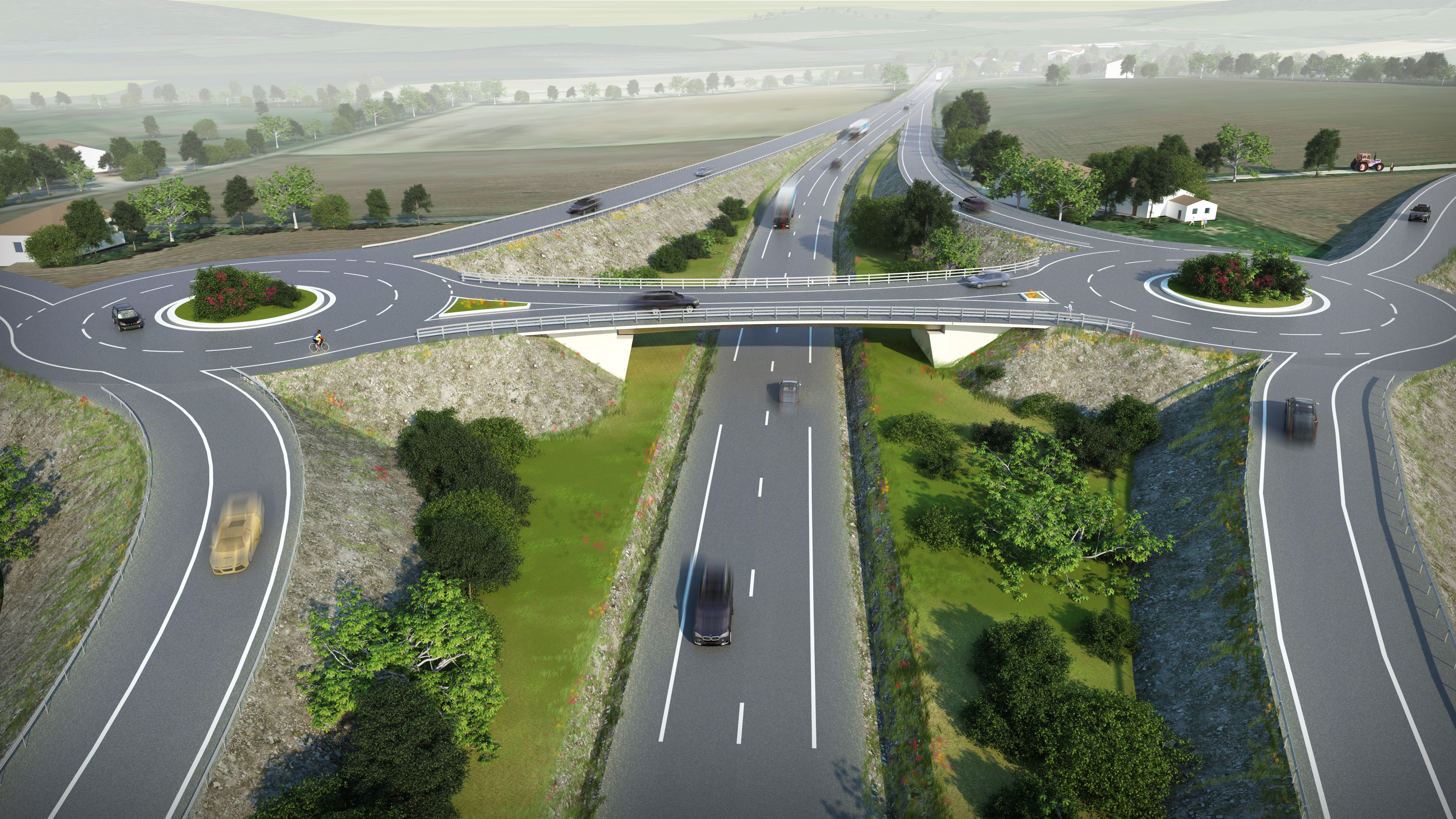

In this regard, we present a conceptual-level idea based on a single-span composite structure with variable depth and closed abutments featuring inclined faces and side walls with an architectural finish.
Pro
An alternative to the reference project is proposed with a more distinctive aesthetic, using similar finishes but reducing the cost of elements that are not visible to road users, particularly by shortening the length of the steel deck and reducing the volume of the abutments, without affecting the road clearance.
In this regard, we present a conceptual-level idea based on a single-span composite structure with variable depth and closed abutments featuring inclined faces and side walls with an architectural finish.
