| C-59 bypass viaduct | |
| Sant Feliu de Codines, Barcelone, Spain | |
| Structural typology | Tender Design |
| Date | April, 2016 |
| Scope | Preliminary project |
| Cliente | INFRAESTRUCTURES DE LA GENERALITAT DE CATALUNYA |
| Design | Fhecor |
| Collaboration | IDP, Forest |
This is a general improvement study (C-59 bypass) aimed at diverting traffic around the town of Sant Feliu de Codines. KP 19+000 to 25+000.
The development of the Construction Project is required for a 520 m-long bridge with a maximum height of 55 m at the central span, allowing the crossing of the Cascurell ravine, through which the Can Bosc stream flows.

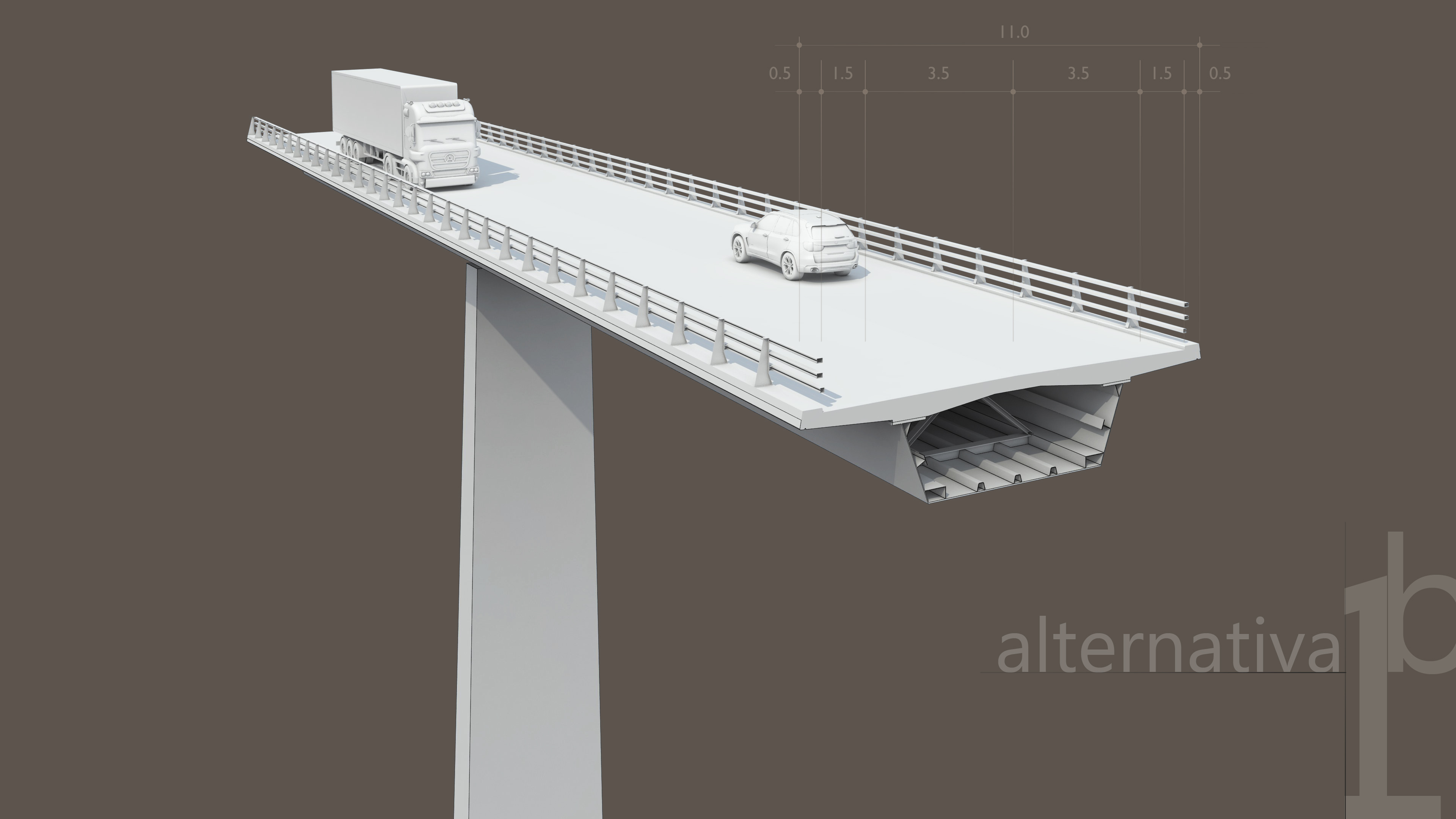

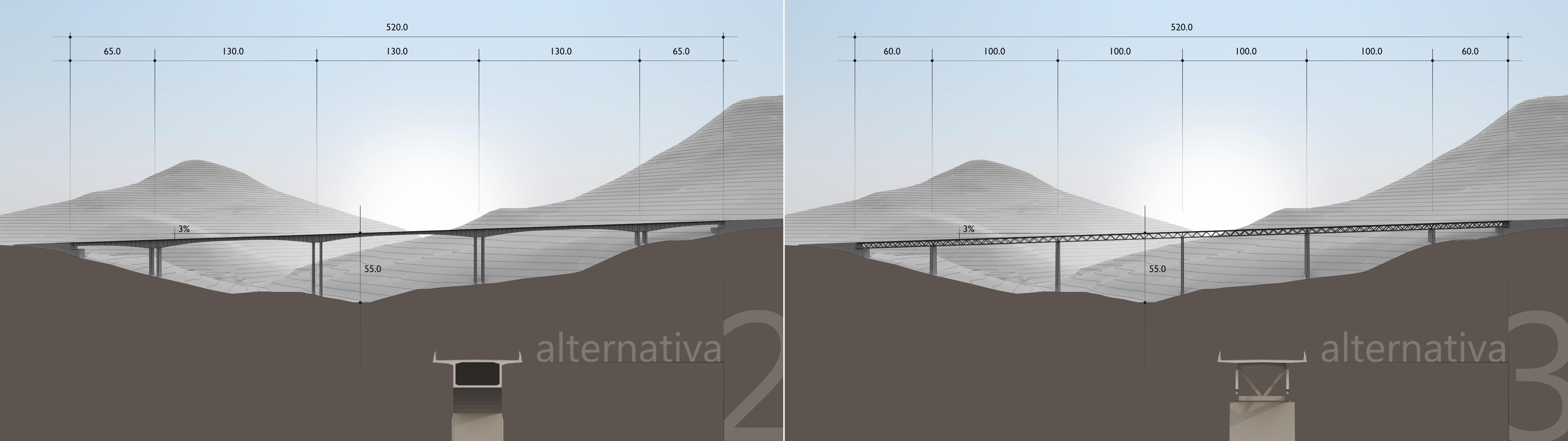

Three different structural deck typologies are analyzed, all allowing the adoption of the same longitudinal configuration. In each case, the result is a viaduct of 520 m in length, divided into spans of 47.5 + 6 x 70 + 47.5 meters.
Each of the three deck typologies explores different pier shapes, ranging from the straight design of alternatives 1a and 1b, to a section with a capital and a diamond-shaped pier that brings lightness and elegance to the structure. It is worth noting that each pier typology is compatible with any of the three deck solutions.
The development of the Construction Project is required for a 520 m-long bridge with a maximum height of 55 m at the central span, allowing the crossing of the Cascurell ravine, through which the Can Bosc stream flows.
Three different structural deck typologies are analyzed, all allowing the adoption of the same longitudinal configuration. In each case, the result is a viaduct of 520 m in length, divided into spans of 47.5 + 6 x 70 + 47.5 meters.
Each of the three deck typologies explores different pier shapes, ranging from the straight design of alternatives 1a and 1b, to a section with a capital and a diamond-shaped pier that brings lightness and elegance to the structure. It is worth noting that each pier typology is compatible with any of the three deck solutions.
